Carbonated drinks filling machine
Production Introduction:
1.The filling machine is used in producing all kind contained with
polyester bottle.
2.Washing.filling,sealing can be carried out on the same machine.
3.The advanced technology from Germany and Italy are employed.
4.The filling device can be stopped automatically when there is no
bottle or bottles are damaged.
5. The bottle outlet starwheel is of screwdown shape. When bottle
size is changed, there is no need to adjust the transferring
chain’s height.
6.The whole machine is controlled by PLC with touch-screen as the
interface between human and machine.The amount of the drinks in the
drink tank can be controlled automatically.The filling and capping
will be stopped automatically when there is no bottly.
2.Main components:
1) driving system;
2) bottle-loading air conveyor system,;
3) bottle-rinsing system;
4) handing-over system between rinsing and filling;
5) filling system;
6) handing-over system between filling and capping;
7) capping system;
8) cap-unscrambling system;
9) bottle-unloading system;
10) frame;
11) electrical system.
Technical parameter
| odel | DCGF 16-12-6 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF 32-32-10 | DCGF 40-40-12 | DCGF 50-50-15 |
| Washing No | 16 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 6 | 6 | 8 | 10 | 12 | 15 |
| Production Capacity(500ml) | 3000BPH | 5000BPH | 8000BPH | 12000 BPH | 15000 BPH | 18000 BPH |
| Install Capacity(KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
| Overall size | 2450×1800×2400 | 2650×1900×2400 | 2900×2100×2400 | 4100×2400×2400 | 4550×2650×2400 | 5450×3210×2400 |
Machine pictures

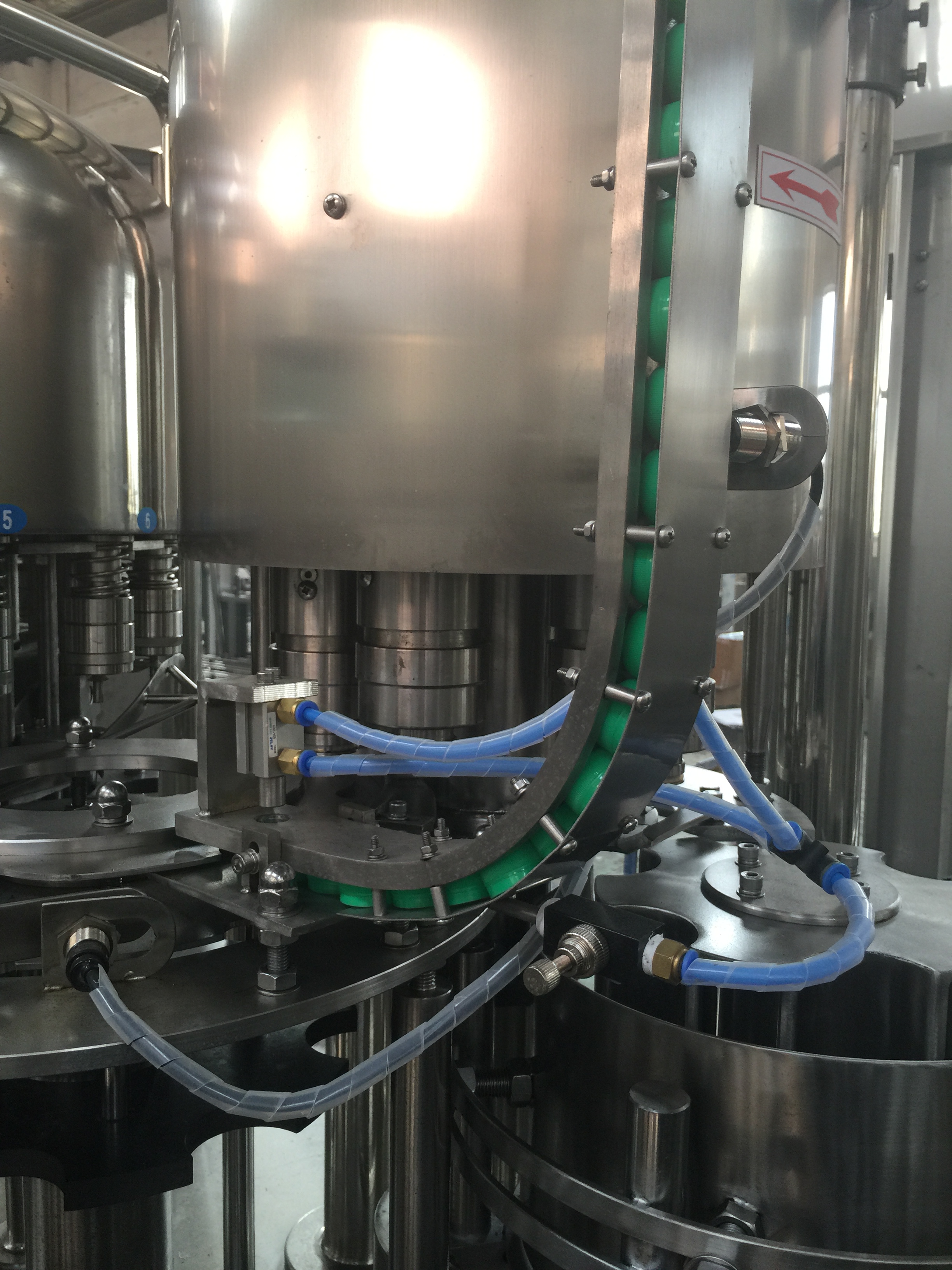

inner look
washing
filling
capping
electrical system
3. The working process
The bottle enters into the rinsing part of three-in-one machine
through air conveyor. The gripper installed on the rotary disk
catches bottle and turns it over 180 degrees and makes the
bottleneck face ground. In the special rinsing area, the nozzle on
the gripper sprays juice to rinse bottle inwall. After rinsing and
draining, the bottle turns over 180 degrees along the guide rail
and make the bottleneck faces sky. Then rinsed bottle is
transferred to the filling part through poking bottle starwheel.
The bottle that enters into the filler is hold by neck holding
plate. The filling valve acted by the cam can realize up and down.
It adopts equal pressure filling way. The filling valve opens and
begins filling when it moves down and touches thebottleneck, the
filling valve move up and leave the bottleneck when it finishes
filling, the full bottle is transferred to the capping part through
hold neck transition poking wheel. The stop screwing knife holds
the bottleneck, keeps bottle upright not rotating. The screw
capping head keeps in revolution and autorotation. It can finish a
whole capping course including catching, pressing, screwing,
discharging through the action of the cam. The full bottle is
transferred to bottle outlet conveyor to the next process through
starwheel. The whole machine is enclosed with windows, the height
of enclosed window is higher than the peak of the 3 in 1 machine,
in the bottom of the enclosed window has return air outlet.
