    Automatic Carbonated Drink Filling Machine For Beverage / Chemical / Medical

    Ask Lasest Price
    Brand Name : JIAYUAN
    Model Number : DGCF32-32-10
    Certification : CE,ISO,SGS
    Price : US $30,000 - 560,000 / Set
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Automatic Carbonated Drink Filling Machine For Beverage / Chemical / Medical

    Carbonated Drink Bottling Line,Sprite Soft Drink Filling And Packing

    Machine

    Introduction


    1). This equipment is automatic washing filling capping three in one machine. It is of many advantages,


    such as compact structure, perfect control system and easy to be operated. Advanced touch screen and


    PLC control system makes man-machine communication true.

    2). Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate,


    guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing


    tank.

    3). Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure


    filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure


    gauge, vacuum pump, etc.

    4). Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap


    drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external


    equipment.

    5). Main electrical components are all imported from world famous brands to guarantee excellent


    performance of the whole machine.


    Characteristic


    1. The machien is mainly used in beverage filling operations.


    2. The three functions of bottle washing,filling and capping are composed in one body of the machine.


    3. The whole machine is automatic.


    4. The machine is usde to fill carbonated drink in bottles made fo polyester and plastic.


    5. The machine is convenient to adjust the amchine to fill various types of bottles.


    6. The filling operation is faster and more stable due to the isobar filling operation of the new type is


    adopted.


    7. The output and benefit of the machine is higher than the machines of the same specification.


    8. It is convenient to operate with higher automation due to every parts of the machine is inspected to run


    with photo electrical detector.


    9. The machine is idea-preferred equipment for beverage maker.


    Technique parameter


    ModelDCGF18-18-6DCGF24-24-8DCGF32-32-10DCGF40-40-12
    Capacity :500ml4000-60006000-80008000-1200012000-16000
    Bottle shape:round or square
    PET bottle: (mm)(Bottle Diameter):φ50-.φ110mm (Height):150-340mm
    Cap:Plastic srew cap
    Filling precision:≤±5mm(liquid level)
    Filling pressure:(Mpa)<0.4
    Water pressure of washing bottle:(Mpa)0.18-0.25
    Water consumption for water bottle(Kg/h)2000250030003000
    Spraying position561212
    Dripping bottle position3.03.577
    Gas source pressure(Mpa)0.4
    Gas consumption(m³/min)0.40.40.50.5
    Total power5.036.578.078.07
    Overall size:(mm)2450*1800*22002780*2200*23503600*2650*23503800*2950*2400
    Weight: (kg)3000400050006000

    Touch screen



    32 head washing part

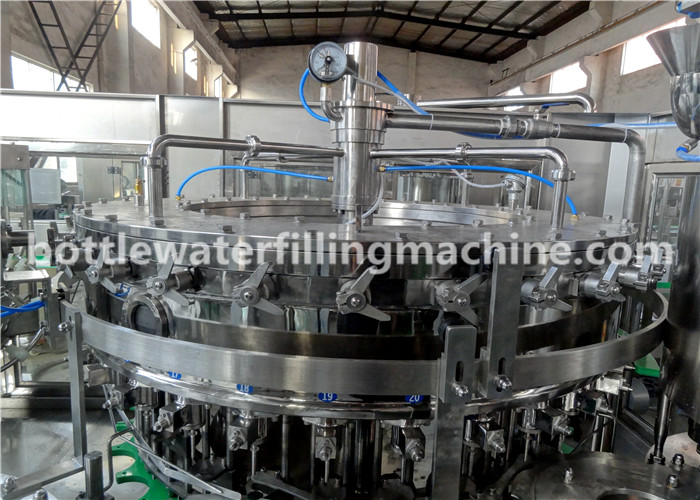

    32 heads Filling part
