    Beverage Carbonated Drink Filling Machine / Soft Drink Making Machines Production Line

    Ask Lasest Price
    Brand Name : JINYATE
    Model Number : DCGF18-6
    Certification : CE SGS
    Price : pls inquire
    Payment Terms : L/C, T/T
    Supply Ability : 99 sets per year
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    Beverage Carbonated Drink Filling Machine / Soft Drink Making Machines Production Line

    Beverage Carbonated Drink Filling Machine / Soft Drink Making Machines Production Line

    (1) the filling machine is mainly used for washing, filling and sealing bottles, can be used for coke, Sprite, and other carbonated beverages.
    (2) washing bottles, filling, capping on a machine.
    (3) the time between the material and the external is shortened. And improve the health conditions, production capacity and economic benefits.
    (4) in the series of filling machine using suspended transmission bottle structure, replacing the bottle is more convenient, faster and more energy saving.
    (5) the main machine adopts advanced programmable controller control technology. The main electrical components used in MITSUBISHI, OMRON, SIEMENS and other international well-known products.


    Machine detailes

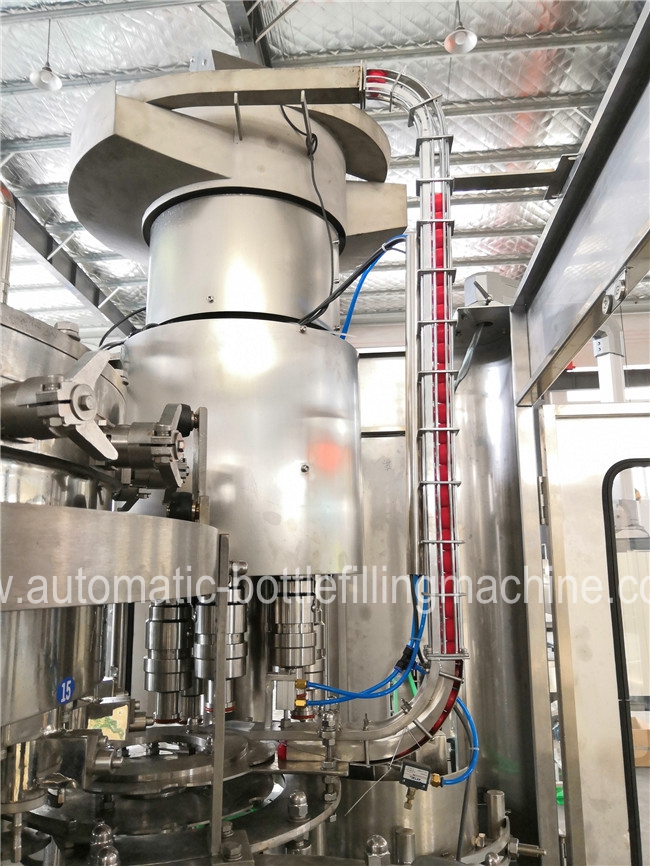

    High Speed Filling Valve

    High Speed Filling Valve can reach 200ml/s,made of SUS 304(for water filling) & excellent SUS316L(for hot filling and soft drinks filling),equipped with specially designed liquid level modified unit to ensure the same level of each bottle.

    Bottle Neck Clamping Technical

    Adopt bottle neck clamp,only these green parts in red circle need to be changed when bottle size change,but bottle neck should be the same.

    Technical Parameters of Carbonated Beverage Machine
    Model
    DCGF16-12-6
    DCGF18-18-6
    DCGF24-24-8
    DCGF32-32-10
    DCGF40-40-12
    Rinsing Heads
    14
    18
    24
    32
    40
    Filling Heads
    12
    18
    24
    32
    40
    Capping Heads
    4
    6
    8
    10
    12
    Capacity(BPH)
    3000
    5000
    7000
    10000
    15000
    Motor Power(KW)
    2.2
    3.5
    4.5
    6.0
    7.5
    Dimension(mm)
    2100*1500*2200
    2300*1700*2400
    2800*2200*2400
    2900*2200*2500
    3600*2700*2850
    Weight(KG)
    2000
    2500
    3500
    5500
    7500

    After-sale Service

    In order to ensure our customers can operate our machines well, after-sale oversea services are provided by our senior engineers. The after-sales services include products implementation, standard operation training, and products maintenance.
