This is 2-in-1 monoblock carbonated drink filling and capping
machine is customized according to customer's
requirements,Usually,we do it as 3-in-1 monoblock washing filling
capping
Description
The machine is a full-automatic multiple-function filling and
capping 2-in-1 unit. It is used in filling and sealing all kinds of carbonated soft drinks such as
CSD, Cola,Soda water, soft drink. The line has features of unique
design,new style, complete functions,multi-purpose, convenient in
operation, beautiful construction, high automaticity. It is the best filling
equipment in China.
Characteristic
1). This machine operates easily, with compact structure, perfect
control system and high level of automation.
2). The filling process of different types of bottles can be
reached only by changing the star-wheel
3). The parts contacting with product is made of quality SUS,
anti-corrosive, and easy to clean.
4). By adopting high speed filling valve, the liquid level is
precise and no waste is to increase. That guarantees the demand of modern filling technology.
5). The capping head adopts constant torque magnetic device to
guarantee capping quality, without any damage to the cap.
6). This machine has a highly efficient cap arranging system,
perfect cap feeding and protection device.
7). The machine is convenient to adjust the amchine to fill various
types of bottles.
8). The filling operation is faster and more stable due to the
isobar filling operation of the new type is adopted.
9). The output and benefit of the machine is higher than the
machines of the same specification.
10). It is convenient to operate with higher automation due to
every parts of the machine is inspected to run with photo electrical detector.
11). The machine is idea-preferred equipment for beverage maker.
Technique parameter
| Model | DGF18-6 | DGF24-8 | DGF32-10 | DGF40-12 |
| Capacity :500ml | 4000 | 6000 | 8000 | 12000 |
| Bottle shape: | round or square |
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
| Cap: | Plastic srew cap |
| Filling precision: | ≤±5mm(liquid level) |
| Filling pressure:(Mpa) | ＜0.4 |
| Water pressure of washing bottle:(Mpa) | 0.18-0.25 |
| Water consumption for water bottle(Kg/h) | 2000 | 2500 | 3000 | 3000 |
| Spraying position | 5 | 6 | 12 | 12 |
| Dripping bottle position | 3.0 | 3.5 | 7 | 7 |
| Gas source pressure(Mpa) | 0.4 |
| Gas consumption(m³/min) | 0.4 | 0.4 | 0.5 | 0.5 |
| Total power | 5.03 | 6.57 | 8.07 | 8.07 |
| Overall size:(mm) | 2450*1800*2200 | 2780*2200*2350 | 3600*2650*2350 | 3800*2950*2400 |
| Weight: (kg) | 3000 | 4000 | 5000 | 6000 |

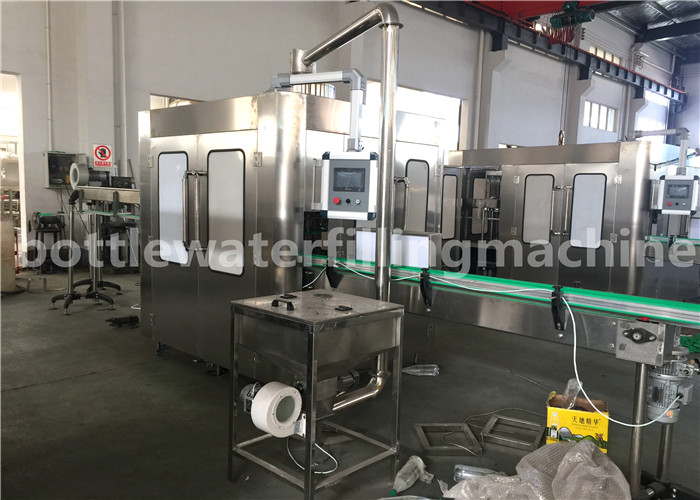

Overall appearance

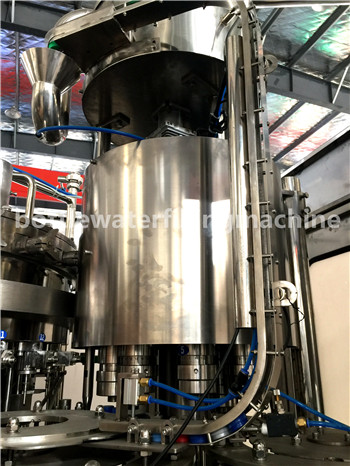

Filling part
Capping part
