CE SGS Carbonated Drink Filling Machine / Soft Drink , Sparkling
Water Bottling Plant
Machine brief introduction
1.This kind of complete set of carbonated beverage filling machine
combines washing,filling and rotary capping functions in one
unit,is a fully automatic and high efficiency liquid packing
equipment.
2.It is suitable for packing carbonated beverage ,beverage
containing gas. Its performance is as following all parts,for
instance, filling valve, which directly contact medium are made of
stainless steel or harmless material. So it conforms to the
requirements of Food sanitation. Sealing parts are made of
heat-proofing rubber from JST company, in order to meet the
technique requirements of users to sterilization at high
temperature.
3.Carbonated beverage filling machine ,using programmable
controller to realize fully automatic control from bottles entering
to finishing packing, Using transducer as speed regulator from JST
company, so the user can regulate the machine easily to suit
different power requirements, Adopting equal pressure filling
principle and current spring valves in order to assure beverage
quality, Using advanced magnetic coupler to regulate cap-screwing
torque, in order to assure capping quality.
Technical parameter
| Model | DGCF24-24-8 |
| Production capacity(500ml) | 6000-8000 |
| Filling material | Carbonated soft drink, soda water, energy drink, cola, sparkling
water |
| Filling precision | ≤±5mm(liquid level) |
| Filling pressure(MPa) | <0.4 |
| Polyester bottle standard(mm) | Bottle neck: 50-100 bottle height:150-320 |
| Suitable cap shape | Plastic screw cap |
| Water pressure of washing bollte(MPa) | 0.18-0.25 |
| Water consumption for water bottle(kg/h) | 2500 |
| Spraying positon | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure | 0.4 |
| Gas consumption (m3/min) | 0.4 |
Total power (kw) | 6.57 |
| Total weight | 4000 |
Dimension(L*W*H) mm | 2750*2180*2200 |

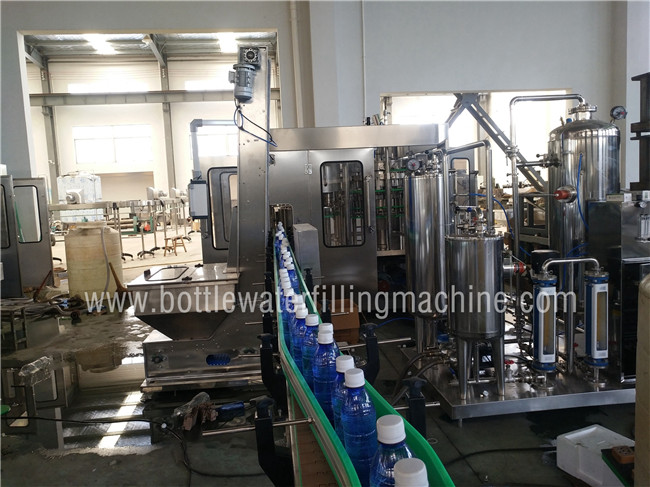

Machine picture
Pls click the picture to watch the video
Our service
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine
running in our factory,we can pick you up from the station near our
city.
3.If we get the permission of the customer who has brought the
machines from us,we can tell you our customers' contact
imformation,you can go to vist their factory.
Customized service
1.We can design the machines according your
requirements(materil,power,filling type,the kinds of the
bottles,and so on),at the same time we will give you our
professional suggestion,as you know,we have been in this industry
for many years.
2. We can offer free technical support and consultation such as
design your factory,draw the factory layout and so on.
3.We are certificated by many famous certificated authories
