Products Introduction

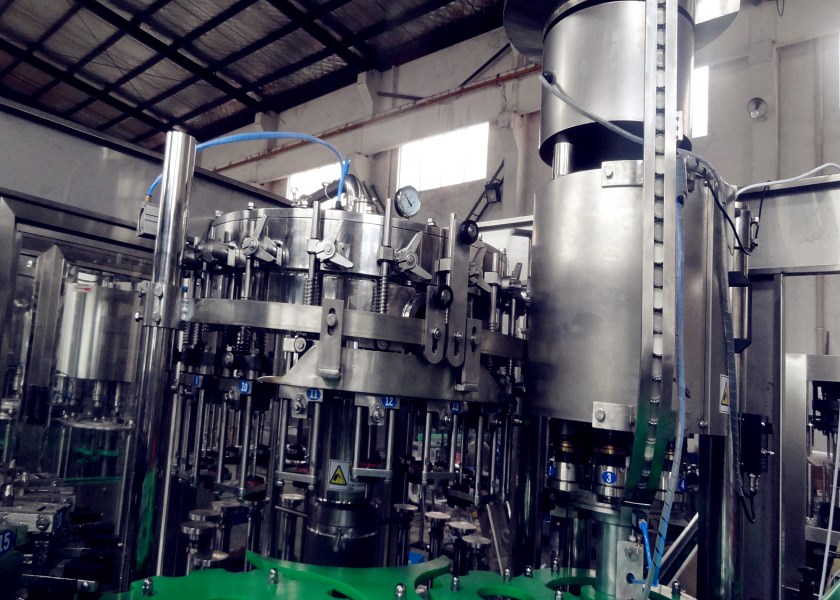

The machine is mainly used for filling carbonated drink. It
combines rinsing and filling and capping as one automatic body
suitable for PET or other plastic bottles. The iso-pressure
(iso-barometric) filling technology is adopted enabling it to fill
more efficiently and more stably with more output than the machine
of the same level from others.
Besides using photo-electronic detectors to detect the running of
every important sub-process, it employs PLC from OMRON for
automatic control of the whole process and new type air-channel for
bottle-loading featuring speediness and damage-free of bottle.
Characteristics
- The high-quality stainless machine is made and designed through
introduce of technology from Germany KRONES Co., which has stained
to the national top. It is mainly used for filling carbonated
beverage with the method of holding the bottoms of the bottles.
- Adopting PLC control, automatic liquid level inspecting and
hygienic structure, which is convenient to be operated and
maintained.
- The machine obtains advantages of high reliability, high
efficiency, high grade of automation and easy operation, etc.It is
equiped with CO2 accuracy pressure control, so that the liquid
level is always stable. The application of alarm devices for bottle
jam, bottle shortage, bottle damage, cap shortage, over loading
etc. in several places ensure the quality of its production.
Technical Data
Model | DCGF32-32-8 | DCGF40-40-40 | DCGF48-48-12 | DCGF60-60-15 |
Heads of washing, filling, sealing | 32-32-8 | 40-40-10 | 48-48-12 | 60-60-15 |
Production capacity(bottle/hour) | 12000-15000 | 16000-18000 | 20000-24000 | 24000-28000 |
Suitable bottle height(mm) | H=170-320,D=50-100(330-1500ml) |
|
Spraying pressure | 0.25-0.3MPa |
Total Power(kw) | 5.5 | 7.5 | 11 | 15 |
| Overall dimension(L×W×H)(mm) | 3800×2800*2650 | 4000×3300*3400 | 4850×3650 *3300 |
6500×5400 *3500 |
Weight(kg) | 6800 | 8500 | 1000 |
Washing part of bottle washing filling capping machine
a) Rotary pan is made of stainless steel 304.
b) The rubber clamp splice seizes the mouth of bottles, which is
fixedness and reliable.
Filling part of bottle washing filling capping machine
a) Rotary pan is made of stainless steel 304
b) The way of filling is gravitation filling.
c) The filling valve is adopted best stainless steel 304
d) The structure of filling valve is reasonable, the amount is
correct
e) When filling the bottle, the bottle is move but the valve is
stationary. The splint of bottle-neck seizes mouth of bottles. The
elevator device with the action of gear realize the up and down of
bottle
Capping part of bottle washing filling capping machine
Capping machine is one of the highest precision machines, which
greatly affects the reliability of device and the defective rate of
product. The characteristic is as follows:
a) The dropping cap guide track fixes the device which can protect
the cap from turning over and also set the device which can take
out the inverse cap, equip a photo electricity switch which can
stop the machine when lacking the cap and also avoid the situation
that there is bottle without cap.
b) The bottle inlet switch which is set in the capping machine,
with the locking cap which is the connection of the dripping cap
guide track and dialing cap pan controls the discharging of cap,
making sure that stop conveyor cap when there is no bottles ,avoid
the waste of cap.
