PCL contol 2016 new design carbonated beverage filling machine for
small factory
Products Introduction
The machine is mainly used for filling carbonated drink. It
combines rinsing and filling and capping as one automatic body
suitable for PET or other plastic bottles. The iso-pressure
(iso-barometric) filling technology is adopted enabling it to fill
more efficiently and more stably with more output than the machine
of the same level from others.

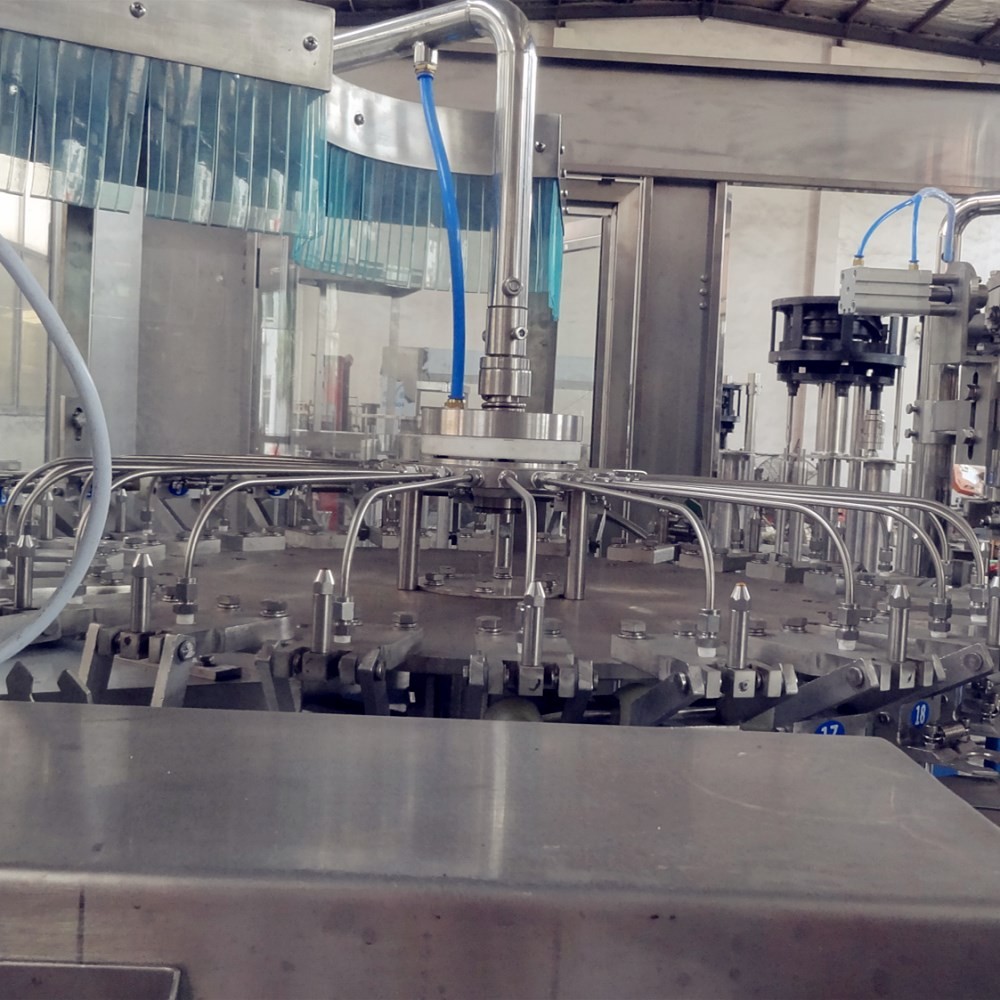

rinsing machine
1) The rotary wheel is a fully AISI304 stainless steel welded
structure.
2) The machine applies unique overturning bottle clamp, which is an
innovation of our company. This bottle clamp grips bottle at neck
position, avoiding bottle mouth thread contamination caused by
rubber gripper block of a traditional bottle clamp. Made of AISI304
stainless steel, this bottle clamp is hygienic and durable.
3) The high efficiency atomizing spray nozzle installed on bottle
clamp incorporating technology from Spaying Systems Co. Ltd., is
capable of cleaning any part of bottle inner wall, and also saves
rinsing water.

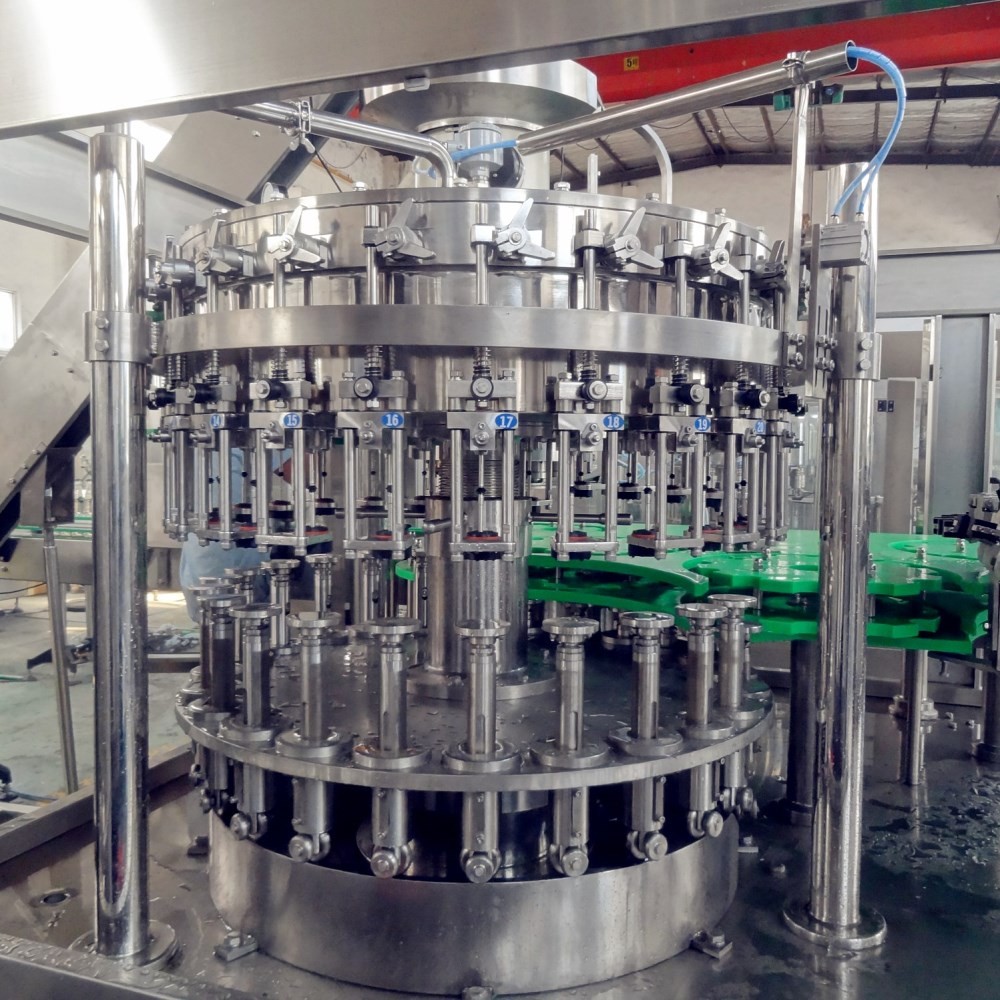

filling machine
1) The filler is designed and manufactured with application of
Italy technology, providing hardware guarantee for securing product quality and reducing loss. Rotary wheel are fully made of stainless steel AISI304.
2) Filling valves are designed and manufactured with German
technology, made of AISI316L, featuring high filling accuracy and
high filling speed.
3) Bottles are raised and lowered by cam controlled lifting
cylinder. Valve opening mechanism is actuated by air cylinder.
capping machine
1) The capper is most precise part in 3 in 1 filling machine,
because the quality of machine ism important to running credibility
and product quality.
2) The cover track has the device to prevent the reversal cover
from passing and pick out the reversal cover. Meanwhile the
photoelectric switch can stop the machine automatically when there
is no cover on the track, by which it can avoid bottle without
cover effectively.
3) It also has the bottle check-up switch. Together with cylinder
on the joint of the cover track and cover lift, they can control
the cover flow and stop it in case no bottle to reduce the quantity
of cover.
4) Highly effective acentric way for cap sorting to reduce the
abrasion. It has the check-up device to control the cover lift.
Technical Data
Model | DCGF40-40-40 | DCGF48-48-12 | DCGF60-60-15 |
Heads of washing, filling, sealing | 40-40-10 | 48-48-12 | 60-60-15 |
Production capacity(bottle/hour) | 16000-18000 | 20000-24000 | 24000-28000 |
Suitable bottle height(mm) | H=170-320,D=50-100(330-1500ml) |
|
Spraying pressure | 0.25-0.3MPa |
Total Power(kw) | 7.5 | 11 | 15 |
| Overall dimension(L×W×H)(mm) | 4000×3300 *3400 | 4850×3650 *3300 | 6500×5400 *3500 |
Weight(kg) | 8500 | 1000 |
