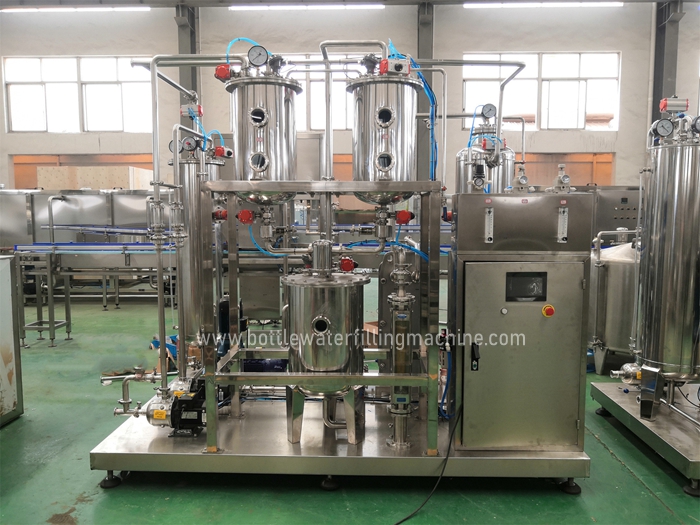

Carbonated Beverage Mixer Drinks Mixing Equipment, Carbonator, CO2 Mixer

This mixer is used to mix CO2 with water sugar, to produce all carboated drink,
like cola, energy drink, soda, sparkling water and so on.

1. Parameter
(1) Range of proportion on syrup and water 1:3 1:10
(2) Volume of Carbonation (CO2: H2O in volume) 2: 5
(3) Mixing precise error ≤2%
(4) Cooling water temperature in entry mouth 0-4
(5) Cooling water pressure in entry mouth 0.01-0.08Mpa
(6) Syrup temperature in entry mouth 2-8
(7) Syrup pressure in entry mouth 0.01-0.08Mpa
(8) CO2 pressure in entry mouth 0.7-0.8Mpa
(9) CO2 pure % 99.9% (10) Pressure for CO2 tank and syrup tank 0.05-0.09Mpa
(11) Working pressure of tank 0.2-0.5Mpa
(12) Total motor power 6.3KW

There are one tank type, three tanks, five tanks:

one tank

three tanks


five tanks

Beverage mixer (carbonated drinks mixer)is used for producing all carbonated beverages (water, syrup, and CO2 mixing), for example lemon, coca cola, fruits juice and so on. It is the main equipment in whole beverage production line. (Especially for middle and higher standard beverage production).
