    Automatic Carbonated Drink Filling Machine 24000BPH Energy Drink Equipment

    Ask Lasest Price
    Brand Name : JIAYUAN
    Model Number : DCGF
    Certification : CE ISO
    Price : please inquire
    Supply Ability : 100 sets per year
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    Automatic Carbonated Drink Filling Machine 24000BPH Energy Drink Equipment

    Automatic Carbonated Drink Filling Machine Energy Drink Manufacturing Equipment

    SPECIFICATIONS
    Machine ModelTIE-PET CSD LINE
    Target productPET bottle packed carbonated drink, cola, sprite, soda, soft drink, energy drink, fizzy drink, sparkling water, carbonated juice, tonic water, beer
    Bottle shapeRound bottle and specific shape bottle

    System composition
    Water treatment system, carbonated drink preparing and mixing system, bottle blowing machine system, empty bottle air conveyor, CSD filling monoblock, automatic cap loader and sterilizer, bottle dryer, automatic labeling machine, automatic bottle wrapping machine, date laser marking machine, automatic palletizer, automatic filled bottle conveyor system
    Output Range1,000 BPH - 24,000 BPH
    Raw water sourceTap water or underground water
    Bottle materialPET preform
    Bottle volume300ml - 200mL (Large volumetric bottle type to customize)
    Cap diameter28mm - 38 mm (Standard)
    Labeling typeSleeve shrink labeling, OPP hot glue labeling, sticker labeling
    Final bottle packing typePE film wrapping, carton packing
    Voltage StandardAccording to the Voltage of the Customer's Location
    Optioanl devicePackaging visual inspection equipment
    Warranty12 months from the date of bill of lading
    Technical servicesproject design, factory construction, installation and recommendations, commissioning

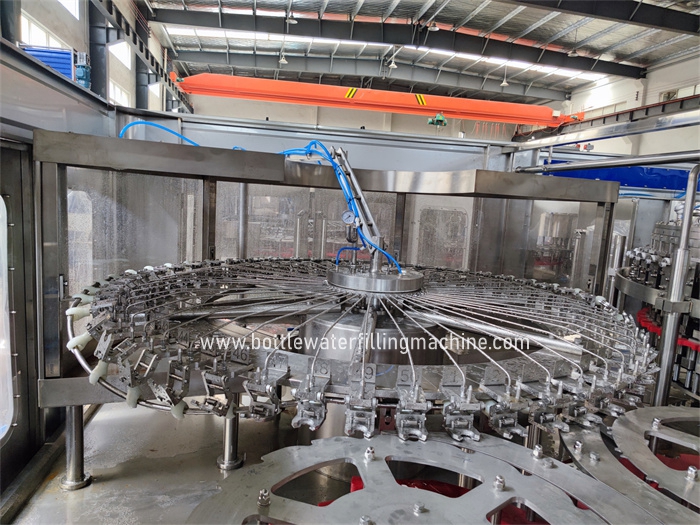

    CSD carbonated drink filling monoblock





    Water treatment system
    Water treatment technology is through a variety of physical and chemical means to remove bacteria, viruses, heavy metals, pesticides, organic matter, minerals and heterochromatic odor. It is a kind of pure water, can be drunk without heating.
    Carbonated drink preparing and mixing system
    The syrup is dissolved, the flavored syrup is prepared, the flavored syrup is ultra-high temperature sterilized, and the flavored syrup is aseptically mixed and carbonated, and finally aseptically filled. This is the current mainstream carbonated beverage pre-filling process.
    Automatic labeling machine
    Automatic labeling machine is divided into sleeve labeling machine, self-adhesive labeling machine, hot melt adhesive labeling machine, and paste labeling machine. Generally, it can choose according to the customer's production line requirements.
    Date laser printer
    The working principle of the laser coding machine is to gather the laser with extremely high energy density on the surface of the marked object, through burning and etching, to vaporize the material on the surface, and to control the effective displacement of the laser beam to accurately burn Carve out patterns or text.
    Automatic bottle wrapping machine
    The shrink film packaging machine uses shrink film to wrap the packaged items, and heat the shrink film to wrap the packaged items tightly, fully showing the appearance of the item, improving the product's displayability, and increasing the beauty and sense of value. At the same time, the packaged items can be sealed, moisture-proof, pollution-proof, and have a proper protective effect

    YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
    ● JIAYUAN is original manufacturer.
    ● If you interested in our products and we can fulfill your request , you may pay a visit to JIAYUAN Factory.
    ● The meaning of visiting supplier, since seeing is believing, JIAYUAN Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.
    SEE JIAYUANMACHINE HOW TO ENSURE THE QUALITY
    ● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
    ● Each component before assembly needs strict control by inspecting personnel.
    ● Each assembly is in charge by a master who has working experience for more than 15 years
    ● After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
    THE AFTER-SALE SERVICE OF JIAYUANMACHINERY
    ● After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
    ● After the commissioning, we will package the equipment by the standard export package for shipment.
    ●According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
    ● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

    our avalable capacity 1000-24000 bottles/hr, if you would like to know more information about us, please contact us
