2500BPH Carbonated Drink Soda Filler Capper with CIP system

Ask Lasest Price
Brand Name :	JIAYUAN
Model Number :	DCGF16-12-6
Certification :	CE
Price :	please inquiry
Supply Ability :	100 sets per year
Delivery Time :	40 working days

Add to Cart

Product Details
Company Profile

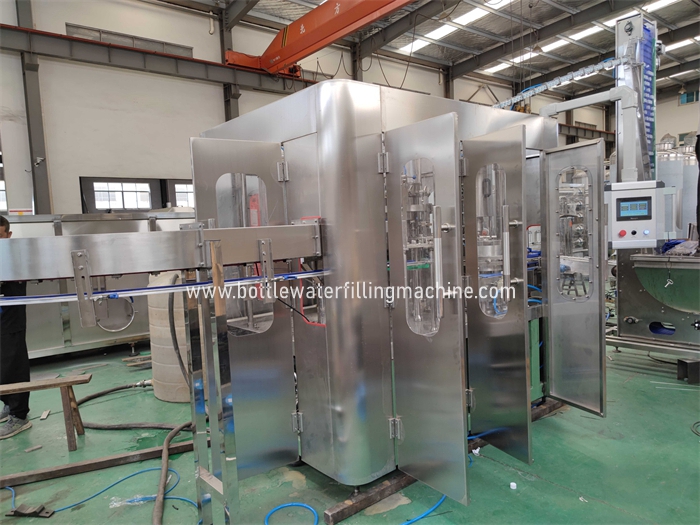

2500BPH Carbonated Drink Soda Filler Capper with CIP system

Carbonated Drink Filling Machine, Soda Filler Capper, Beverage Bottling Plants

Feature of carbonated drink filling machine

Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum degree.product storage hopper and feed system adopts reasonable product feed design(constant flow,constant pressure,no foaming).product hopper with reasonable structure(exhaust,fully close,temperature can be detected).medium and high speed line adopts product distributor instead of large liquid carousel,which can be cleaned completely by pressure cleaning with CIP.sanitary filling valve system umbrella-flow type structure,high speed.perfect hot filling temperature control system.product recycle tank system with automatic product feed startup.perfect CIP system.

Washing part:

1.The rotary wheel is a fully SUS304 stainless steel welded structure.

2.The rinse is driven by driving system positioned inside machine frame via gear transmission.

Filling part:

1.Filling valves are designed and manufactured with German technology, made of SS304, featuring high filling accuracy and high filling speed.

2.The filler is driven by driving system positioned inside machine frame via gear transmission.

3.Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.

Sealing part:

1. Highly effective acentric way for cap sorting to reduce the abrasion.

2.The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover.

2500BPH Carbonated Drink Soda Filler Capper with CIP system

SPECIFICATIONS
Machine Model	PET CSD LINE
Target product	PET bottle packed carbonated drink
Bottle shape	Round bottle and specific shape bottle
System composition	Water treatment system, carbonated drink preparing and mixing system, bottle blowing machine system, empty bottle air conveyor, CSD filling monoblock, automatic cap loader and sterilizer, bottle dryer, automatic labeling machine, automatic bottle wrapping machine, date laser marking machine, automatic palletizer, automatic filled bottle conveyor system
Output Range	1,000 BPH - 24,000 BPH
Raw water source	Tap water or underground water
Bottle material	PET preform
Bottle volume	150ml - 2L (Large volumetric bottle type to customize)
Bottle neck size	28mm - 30mm (Standard)
Bottle height	230mm - 400mm (Standard)
Bottle bottom diameter	520mm - 680mm (Standard)
Cap diameter	30mm - 32 mm (Standard)
Labeling type	Sleeve shrink labeling, OPP hot glue labeling, sticker labeling
Final bottle packing type	PE film wrapping, carton packing
Voltage Standard	According to the Voltage of the Customer's Location
Optioanl device	Packaging visual inspection equipment
Warranty	12 months from the date of bill of lading
Technical services	project design, factory construction, installation and recommendations, commissioning
